1SBN082311R1000
INR 1176INR 3360
In stock
Description

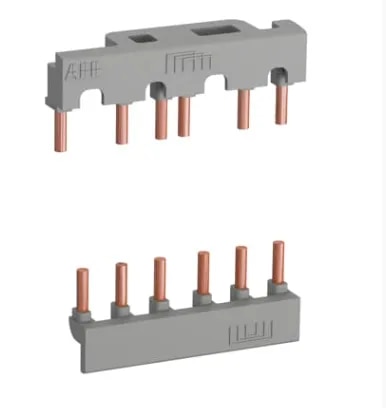

ABB 1SBN082311R1000 – BER38-4 is an insulated connection set for reversing contactors, designed to simplify the power wiring of two ABB AF26 through AF38 3-pole contactors mounted side by side in a forward/reverse motor starter arrangement. The BER38-4 set consists of one upstream and one downstream connection assembly, manufactured from insulated solid copper bars. These connections link the main poles of the two contactors in the electrical configuration required for reversing the phase sequence and therefore reversing the direction of a three-phase motor.
Specifications
| Category | Reversing Contactor Connection Set |
|---|---|
| Extended Product Type | BER38-4 |
