1SAT145000R1011

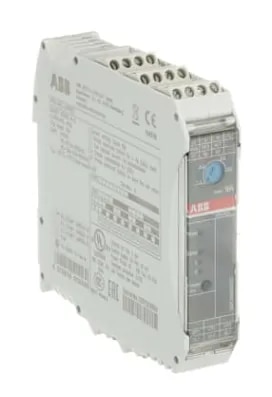

ABB 1SAT145000R1011 HF9-ROL-24VDC Electronic Compact Starter is a compact reversing motor starter with integrated electronic overload protection from ABB’s HF series. It is designed for forward and reverse operation of three-phase motors as well as switching non-resistive loads. ABB specifies this exact model with a 1.5–9 A adjustable current range, 24 V DC control supply, and motor applications up to 3 kW at 400 V. The HF9-ROL combines contactor and overload-relay functions in a single 22.5 mm wide device, helping reduce panel space, wiring time, and potential wiring faults. It provides electronic overload protection, Trip Class 10A, phase-loss sensitivity, and protection across all three motor poles. This ROL version supports both forward and reverse motor operation. ABB also offers separate ROLE variants with an emergency-stop safety function, so this standard ROL model should not be confused with the safety version. It is suitable for applications such as reversible conveyors, packaging machines, machine tools, positioning drives, material-handling systems, and compact industrial control panels.
