1SAT146000R1011

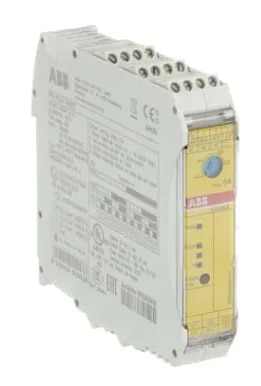

ABB 1SAT146000R1011 HF9-ROLE-24VDC Electronic Compact Starter is a reversing safety motor starter from ABB’s HF series. It combines forward/reverse motor control, electronic overload protection, and emergency-stop safety functionality in one compact 22.5 mm device. ABB identifies this exact order code as HF9-ROLE-24VDC, with a 24 V DC control supply and an adjustable setting range up to 9 A. The starter is designed for three-phase motors and non-resistive loads. ABB specifies 1.5–9 A setting range, 6.5 A AC-53a operational current, 9 A AC-51 current, and 3 kW motor power. It also provides Class 10A electronic overload protection, phase-loss sensitivity, and protection across all three poles. The ROLE version is ABB’s safety reversing variant. In addition to DOL and reversing operation, it incorporates an emergency-stop function and is certified to SIL 3, Safety Category 3, and Performance Level up to PL e. This makes it particularly suitable for reversible conveyors, machine tools, packaging machines, material-handling systems, positioning drives, and other safety-related automation applications.
