1SAT126000R1011

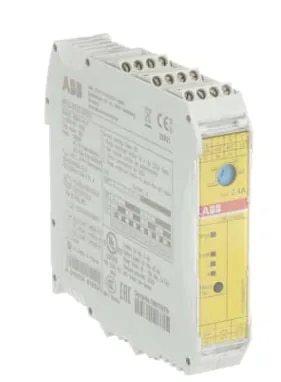

ABB 1SAT126000R1011 HF2.4-ROLE-24VDC Electronic Compact Starter is a compact reversing safety motor starter from ABB’s HF series. It combines forward/reverse motor control, electronic overload protection, and emergency-stop safety functionality in one narrow device. The unit is designed for three-phase motors and uses a 24 V DC control supply with an adjustable motor-current range of 0.18–2.4 A. The HF2.4-ROLE is intended for applications where the motor must run in both directions while also meeting machine-safety requirements. It provides Trip Class 10A electronic overload protection, phase-loss sensitivity, and protection across all three phases. Its compact width of around 22.5 mm helps reduce panel space and wiring compared with separate reversing contactors, overload relays, and safety devices.
