1SAT116000R1011

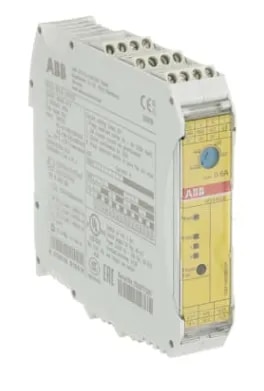

ABB 1SAT116000R1011 HF0.6-ROLE-24VDC Electronic Compact Starter is a compact reversing safety motor starter from ABB’s HF series, combining direct-on-line starting, reversing operation, electronic overload protection, and emergency-stop functionality in one device. ABB specifies an adjustable current range of 0.075–0.6 A, a 24 V DC control supply, and operation on a main circuit from 42–550 V AC. The HF0.6-ROLE is intended for forward and reverse running three-phase motors and for switching non-resistive loads. Its integrated electronic overload protection is Trip Class 10A, with phase-loss sensitivity and protection on all three poles. The compact starter is only 22.5 mm wide, helping reduce panel space and wiring compared with separate reversing contactors and overload relays. The ROLE designation identifies ABB’s safety reversing version: in addition to reversing and overload protection, it includes an emergency switching-off function. ABB certifies this model to SIL 3, Safety Category 3, and Performance Level up to PL e. It is therefore suitable for safety-related machinery, reversible conveyors, packaging equipment, positioning systems, material handling, and compact automation panels.
