1SAT115000R1011

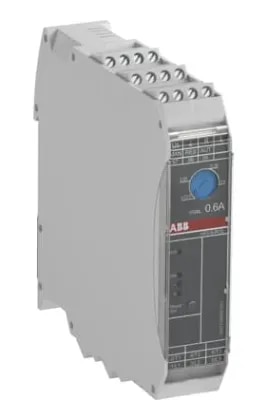

ABB 1SAT115000R1011 HF0.6-ROL-24VDC Electronic Compact Starter is a compact reversing motor starter with integrated electronic overload protection from ABB’s HF range. It is designed for forward and reverse control of three-phase motors and for switching non-resistive loads. By combining contactor and overload relay functions in one device, it reduces panel space, wiring time, and potential wiring faults. ABB specifies a 0.075–0.6 A setting range and a 24 V DC control supply. The unit provides electronic protection against thermal overload, phase asymmetry, and phase failure. ABB classifies this model as HF0.6-ROL-24VDC, meaning it supports both direct-on-line and reversing operation with overload protection, but does not include emergency switching-off functionality; that feature is available on the HF0.6-ROLE version. At 400 V, the model is rated for approximately 0.18 kW motor power, with 0.6 A AC-53a and AC-51 operational current. The unit is only 22.5 mm wide, making it well suited for compact MCCs, OEM machine panels, conveyors, packaging machinery, positioning systems, and small reversible motor applications.
