1SAT112000R1011

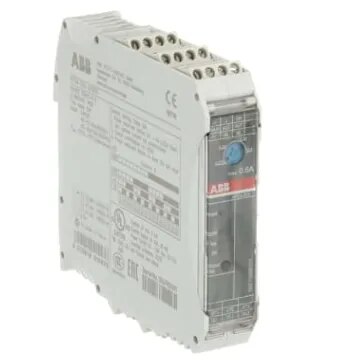

ABB 1SAT112000R1011 HF0.6-DOL-24VDC Electronic Compact Starter is a highly compact direct-on-line (DOL) motor starter from ABB’s HF electronic starter range. It combines contactor switching and electronic overload protection in a single 22.5 mm wide device, helping reduce panel space, wiring time, and installation errors. ABB specifies this exact model with a 0.075–0.6 A adjustable motor-current range and 24 V DC control supply. The HF0.6-DOL-24VDC is intended for direct-on-line starting of three-phase motors and for switching non-resistive loads. Its integrated electronic overload protection is Trip Class 10A, and it provides phase-loss sensitivity and motor protection across all three poles. The main circuit is rated up to 500 V AC, with an operational voltage range of approximately 42–550 V AC and 50/60 Hz operation. This electronic starter is especially useful in compact industrial control panels, conveyors, machine tools, packaging equipment, material handling systems, and small machinery. ABB highlights the HF family as a space-saving solution, with the range covering motors up to 3 kW at 500 V AC across its different current versions. This particular HF0.6 model has an AC-53a operational power rating of 0.18 kW.
