1SAM340000R1006

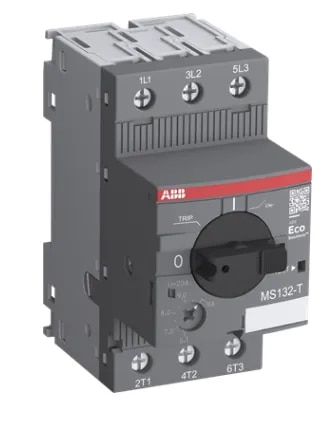

ABB 1SAM340000R1006, model MS132-1.6T, is a compact 3-pole circuit breaker for primary-side transformer protection. It is designed to provide fuse less overload and short-circuit protection for control transformers used in industrial panels, automation equipment and machinery. The unit has an adjustable current range of 1.0–1.6 A and a rated operational current of 1.6 A. The MS132-1.6T uses a fixed instantaneous short-circuit trip setting of approximately 20 times the rated operational current, equivalent to about 32 A. This characteristic helps accommodate the high inrush current generated when transformers are energized. It offers a rated service short-circuit breaking capacity of 100 kA at 400 V AC and Trip Class 10 overload protection.
