1SFL617001R7111

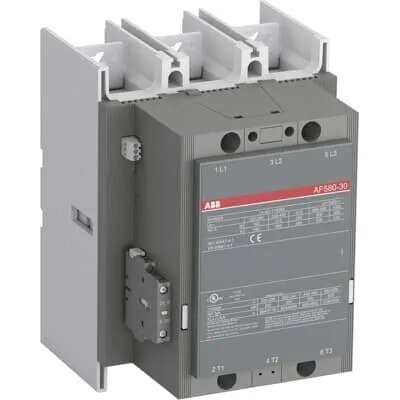

The ABB AF580-30-11-71 Contactor, Part No. 1SFL617001R7111, is a heavy-duty 3-phase, 3-pole power contactor designed for large industrial motor-control and high-current switching applications. It uses ABB’s AF electronic coil technology with a broad 250–500 V AC/DC control-voltage range and incorporates integrated surge protection, helping simplify control-panel design.

The contactor is fitted with 3 normally-open main contacts and 1 NO + 1 NC auxiliary contacts. ABB rates it at 580 A AC-3 at 220–500 V, 500 A at 690 V, and 250 A at 1000 V. Its AC-3 motor ratings include 315 kW at 380/400 V, 355 kW at 415/440 V, 400 kW at 500 V, and 500 kW at 690 V.
