1SFL617001R7011

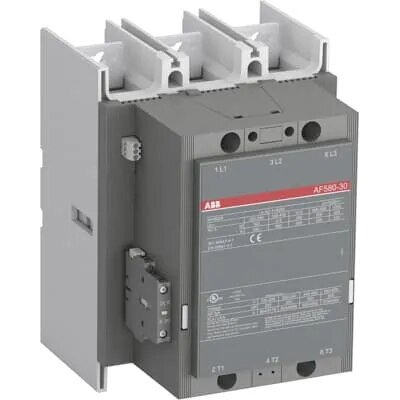

The ABB AF580-30-11-70 Contactor, Part No. 1SFL617001R7011, is a heavy-duty 3-phase, 3-pole power contactor intended for large industrial motor-control and high-current switching applications. It uses ABB’s AF electronic coil technology with a wide 100–250 V AC/DC control-voltage range and comes with 3 normally-open main contacts plus 1 NO + 1 NC auxiliary contacts.

For AC-3 motor duty, ABB rates it at 580 A at 220–500 V, 500 A at 690 V, and 250 A at 1000 V. Motor ratings include 315 kW at 380/400 V, 355 kW at 415/440 V, 400 kW at 500 V, 500 kW at 690 V, and 355 kW at 1000 V. For AC-1 duty, it supports 800 A at 690 V and 1000 V at 40°C.
