1SFL617001R6911

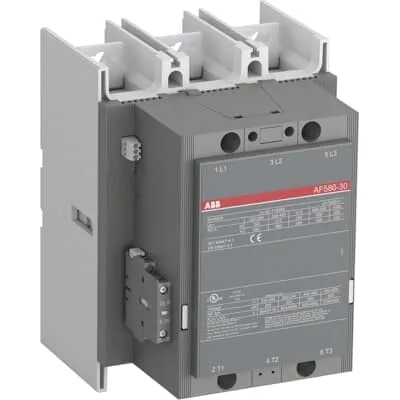

The ABB AF580-30-11-69 Contactor, Part No. 1SFL617001R6911, is a heavy-duty 3-phase, 3-pole power contactor designed for large industrial motor-control and high-current power-switching applications. It incorporates ABB’s AF electronic coil technology with a wide 48–130 V AC/DC control-voltage range, helping manage control-voltage variation and unstable supply conditions. ABB also specifies built-in surge protection for this AF contactor platform.

The contactor has 3 normally-open main contacts with 1 NO + 1 NC pre-mounted auxiliary contacts and bar-type main terminals. ABB rates it at 580 A AC-3 at 380/400 V, 415 V, 440 V and 500 V, 500 A at 690 V, and 250 A at 1000 V.
