1SFL597001R7111

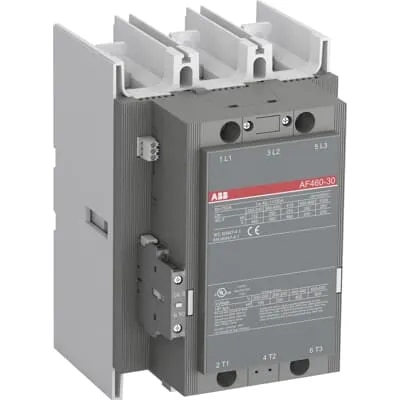

The ABB AF460-30-11-71 Contactor, Part No. 1SFL597001R7111, is a heavy-duty 3-phase, 3-pole power contactor designed for high-current industrial motor-control, isolation, bypass, and power-switching applications. It uses ABB’s AF electronic coil technology with a wide control-voltage range of 250–500 V AC, 50/60 Hz, and 250–500 V DC.

The contactor features 3 normally-open main contacts and 1 NO + 1 NC auxiliary contacts. In AC-3 motor duty, the AF460 class is rated around 460 A at 380/400 V, 415 V, 440 V, and 500 V, reducing at higher voltages. Typical motor ratings include approximately 250 kW at 380/400 V, 415 V and 440 V, 315 kW at 500 V, and 355 kW at 690 V.
