1SFL587002R1311

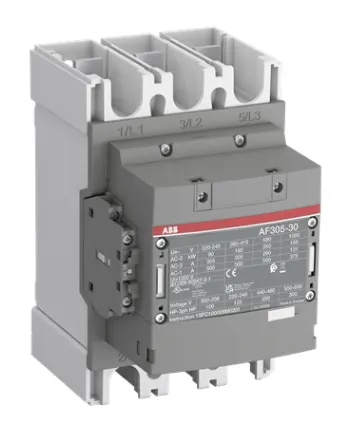

The ABB AF305-30-11-13 Contactor, Part No. 1SFL587002R1311, is a heavy-duty 3-phase, 3-pole power contactor designed for industrial motor control and high-current switching applications. It uses ABB’s AF electronic coil technology and operates with a wide control-voltage range of 100–250 V AC, 50/60 Hz, and 100–250 V DC.

The contactor is equipped with 3 normally-open main contacts and 1 NO + 1 NC auxiliary contact. ABB specifies an AC-3 rated operational current of 305 A at 380/400 V, 415 V and 440 V, reducing to 290 A at 500 V and 690 V. Its corresponding AC-3 motor ratings are 160 kW at 380/400 V, 415 V and 440 V, 200 kW at 500 V, and 250 kW at 690 V.
