1SFL587002R1211

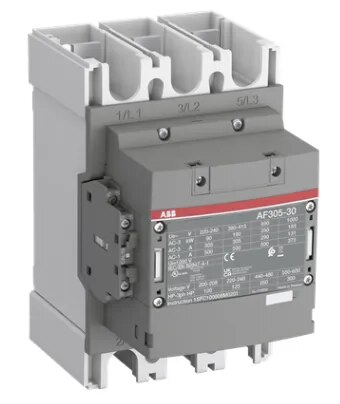

The ABB AF305-30-11-12 Contactor, Part No. 1SFL587002R1211, is a heavy-duty 3-phase, 3-pole power contactor intended for demanding industrial motor-control and power-switching applications. It uses ABB’s AF electronic coil technology and operates on a wide control-voltage range of 48–130 V AC, 50/60 Hz, and 48–130 V DC.

The contactor includes 3 normally-open main contacts and 1 NO + 1 NC auxiliary contact. ABB specifies an AC-3 current rating of 305 A at 380/400 V, 415 V and 440 V, with corresponding motor ratings of 160 kW at 380/400 V, 415 V and 440 V, 200 kW at 500 V, and 250 kW at 690 V.
