1SFL547002R1411

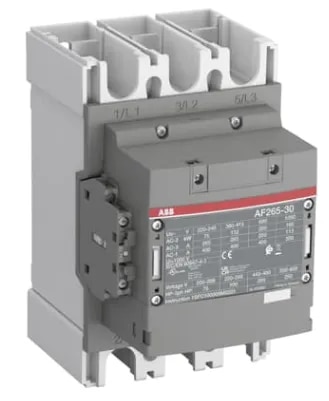

The ABB AF265-30-11-14 Contactor, Part No. 1SFL547002R1411, is a heavy-duty 3-phase, 3-pole power contactor designed for industrial motor-control and power-switching applications. It uses ABB’s AF electronic coil technology with a wide control-voltage range of 250–500 V AC, 50/60 Hz, and 250–500 V DC. ABB also notes integrated surge protection in the AF range, which helps reduce the need for separate surge suppressors. The contactor has 3 normally-open main contacts and 1 NO + 1 NC built-in auxiliary contacts. For AC-3 duty, ABB rates it at 265 A at 380/400 V, 415 V and 440 V, 250 A at 500 V and 690 V, and 113 A at 1000 V. Motor power ratings include 132 kW at 380/400 V and 415 V, 160 kW at 440 V and 500 V, and 200 kW at 690 V.
