1SFL527002R1311

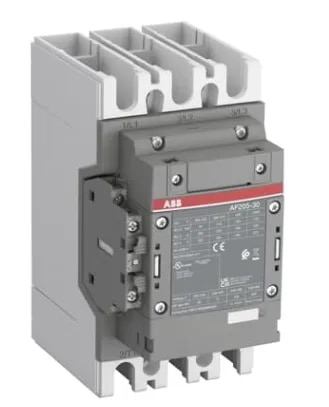

The ABB AF205-30-11-13 Contactor, Part No. 1SFL527002R1311, is a heavy-duty 3-phase, 3-pole block contactor designed for applications such as motor starting, isolation, bypass switching and power distribution. It supports a main-circuit operating voltage up to 1000 V IEC and uses ABB’s electronic AF coil technology with a wide control-voltage range of 100–250 V AC, 50/60 Hz, and 100–250 V DC.

The contactor has 3 normally-open main contacts and 1 NO + 1 NC auxiliary contact. Its AC-3 operational current is 205 A at 380–440 V, making it suitable for motor loads up to 110 kW at 380/400 V and 415 V, 132 kW at 440 V, and 160 kW at 690 V. For AC-1 duty, ABB specifies up to 350 A at 690 V and 40°C.
