1SFL527002R1211

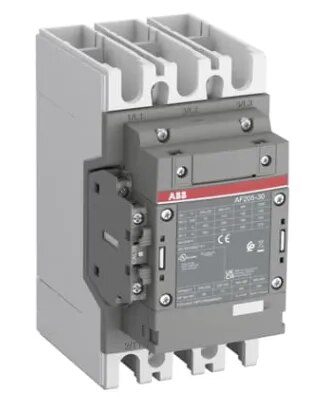

The ABB AF205-30-11-12 Contactor, Part No. 1SFL527002R1211, is a heavy-duty 3-phase, 3-pole power contactor designed for motor starting, isolation, bypass, switching and power-distribution applications in industrial electrical systems. It supports a main-circuit operating voltage of up to 1000 V IEC and uses ABB’s wide-range electronic coil technology with a control voltage of 48–130 V AC, 50/60 Hz, and 48–130 V DC.

It has 3 normally-open main contacts and 1 NO + 1 NC built-in auxiliary contact. In AC-3 motor duty, it is rated for approximately 110 kW at 380/400 V and 415 V, 132 kW at 440 V, and 160 kW at 690 V. Its conventional free-air thermal current is 350 A at 40°C, while its AC-1 operational current reaches 350 A at 690 V, 40°C.
