1SBL347001R1100
INR 8932INR 25520
In stock
Description

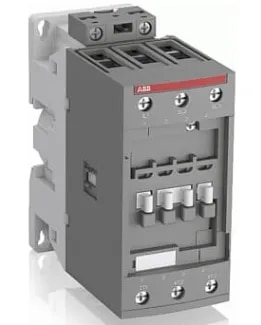

ABB confirms 1SBL347001R1100 = AF40-30-00-11. It is a 3-pole AF Series contactor with a wide-range 24–60 V AC / 20–60 V DC electronic coil, intended primarily for three-phase motor control and switching non-inductive or slightly inductive loads.
At 380/400 V, ABB specifies 40 A AC-3 and 18.5 kW motor power. At 415 V and 440 V, the operational power rating is 22 kW. For AC-1 duty, it is rated up to 70 A at 690 V and 40°C.
Specifications
| Model | AF40-30-00-11 |
|---|---|
| Main Contacts | 3 NO |
