1SBL237001R1100

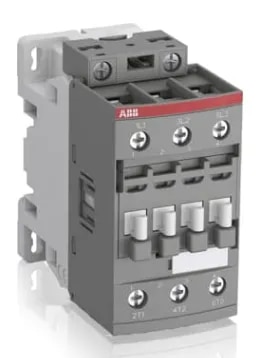

The ABB AF26-30-00-11, Product ID 1SBL237001R1100, is a compact 3-pole block contactor from ABB’s AF series, designed for switching three-phase motors, non-inductive loads and slightly inductive industrial loads. It has 3 normally-open main poles and no factory-mounted auxiliary contacts (0 NO + 0 NC); compatible front- and side-mounted auxiliary contact blocks can be added when required.

A major feature of this model is its wide-range electronic coil interface, which accepts 24–60 V AC at 50/60 Hz and 20–60 V DC.

For motor applications, ABB specifies 26 A AC-3 at 380/400/415/440 V, with a rated motor output of 11 kW at 380/400/415 V and 15 kW at 440 V. At 500 V, the AC-3 rating is 23 A / 15 kW, while at 690 V it is 17 A / 15 kW. For AC-1 general-load switching, the rated current is 45 A at 690 V and 40°C, reducing according to ambient temperature.
