1SBL177001R1301

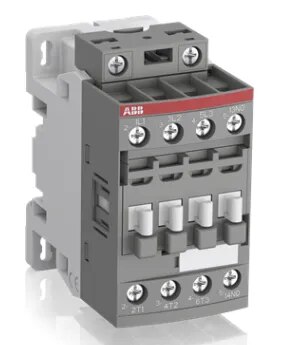

The ABB AF16-30-01-13, Product ID 1SBL177001R1301, is a compact 3-pole block contactor from ABB’s AF series, designed for switching three-phase motors and general industrial power loads. It incorporates 3 normally-open main poles and 1 built-in normally-closed auxiliary contact, making it useful for motor starters and control circuits that require an NC feedback or interlocking contact.

This model uses ABB’s electronic wide-range coil technology, operating from 100–250 V AC at 50/60 Hz or 100–250 V DC. For AC-3 motor duty, ABB specifies 18 A at 380/400/415/440 V, 15 A at 500 V, and 10.5 A at 690 V. The catalog identifies this model as a 7.5 kW AC-3 contactor at 400 V.
