1SBL177001R1110

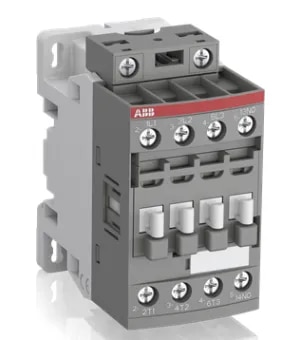

The ABB AF16-30-10-11, Product ID 1SBL177001R1110, is a compact 3-pole block contactor intended for controlling three-phase motors, non-inductive loads and slightly inductive industrial loads. It features 3 normally-open main contacts together with 1 built-in normally-open auxiliary contact.

This model uses ABB’s wide-range electronic coil interface, accepting 24–60 V AC at 50/60 Hz and 20–60 V DC.

For motor-control applications, the AF16 family is rated at 16 A AC-3 and approximately 7.5 kW at 400 V. It is suitable for use in DOL motor starters, MCC panels, pump panels, compressor panels, HVAC equipment, conveyors, machinery control and OEM automation systems. ABB documentation identifies the AF16-30-10-11 specifically as the 1 NO auxiliary, screw-terminal version with this low-voltage AC/DC coil range.
