1SBL157001R1210
INR 2373INR 6780
In stock
Description

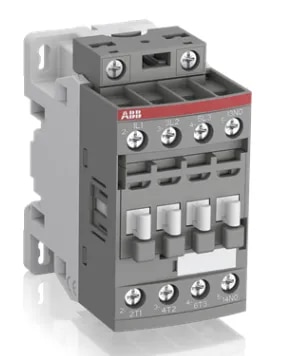

The ABB AF12-30-10-12, Product ID 1SBL157001R1210, is a compact 3-pole block contactor from ABB’s AF series, designed for switching and controlling three-phase motors, non-inductive loads and slightly inductive industrial loads.
It features 3 normally-open main power contacts and 1 built-in normally-open auxiliary contact (1 NO + 0 NC). Additional front- and side-mounted auxiliary contact blocks can be fitted when extra signaling, interlocking or control contacts are required.
The contactor uses ABB’s wide-range electronic coil technology, operating from 48–130 V AC at 50/60 Hz as well as 48–130 V DC.
Specifications
| Model | AF12-30-10-12 |
|---|---|
| Poles | 3 Pole |
