GJL1311901R0013

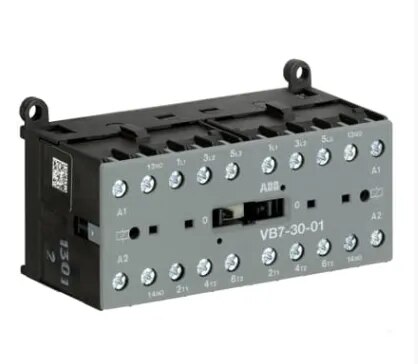

ABB GJL1311901R0013 – VB7-30-01-03 Mini Reversing Contactor is a compact three-pole reversing contactor assembly designed for forward and reverse control of three-phase motors. It features 3 normally open main power contacts (3NO) together with 1 normally closed auxiliary contact (1NC) and uses screw terminals for reliable electrical connections. The unit operates with a 48 V AC control coil at 40–450 Hz. ABB rates the VB7-30-01-03 at 12 A AC-3 at 400 V and 55°C, corresponding to a 5.5 kW motor rating at 400 V.
