GJL1313901R0104

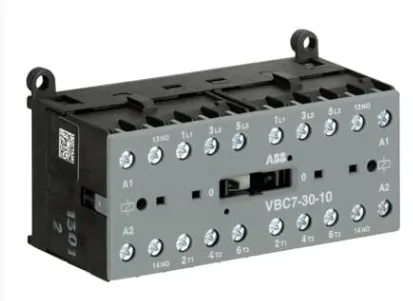

ABB GJL1313901R0104 – VBC7-30-10-04 Mini Reversing Contactor is a compact DC-operated reversing contactor assembly designed for dependable forward and reverse control of three-phase motors. It combines two contactor functions with mechanical interlocking to prevent simultaneous forward and reverse operation, making it suitable for direction-control applications in compact industrial panels. The unit is equipped with a 110–125 V DC control coil, 3 normally open main power contacts (3NO) and a 1 normally open auxiliary contact configuration. ABB rates the VBC7 platform for 5.5 kW motor duty at 400 V, 12 A AC-3, and 20 A AC-1. ABB also lists a 16 A at 600 V general-use rating under UL/CSA data.
