GJL1311901R0011

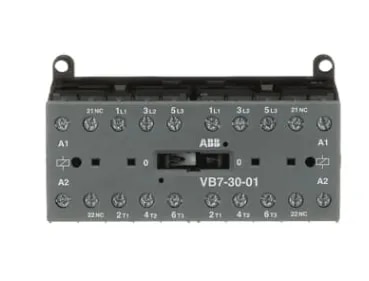

ABB GJL1311901R0011 – VB7-30-01-01 Mini Reversing Contactor is a compact reversing contactor assembly designed for reliable forward and reverse control of three-phase motors. It incorporates mechanically interlocked contactors to prevent simultaneous energization of the forward and reverse circuits, helping provide dependable motor-direction control. The unit features 3 normally open main power contacts (3NO) and 1 normally closed auxiliary contact (1NC) and operates with a 24 V AC control coil at 40–450 Hz. The ABB VB7 range is suitable for motor loads up to 5.5 kW at 400 V under AC-3 duty, with an operational current of approximately 11.5 A at 380/400 V, and general-purpose loads up to 20 A under AC-1 duty.
