GJL1213901R0101

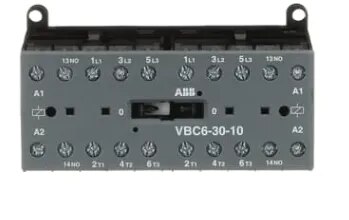

ABB GJL1213901R0101 – VBC6-30-10-01 Mini Reversing Contactor is a compact DC-operated reversing contactor assembly designed for reliable forward and reverse control of three-phase motors. It incorporates a normal mechanical interlock, preventing simultaneous operation of the forward and reverse contactors and making it suitable for applications where dependable motor direction control and limited panel space are important. The unit operates with a 24 V DC control coil and features 3 normally open main power contacts (3NO) together with 1 normally open auxiliary contact (1NO). ABB specifies an AC-3 operational current of 8.5 A at 380/400 V and 55°C, corresponding to a 4 kW motor rating at 400 V. Under AC-1 duty, the main circuit is rated 20 A at 40°C, with a rated insulation voltage of 690 V.
