GJL1213901R0014

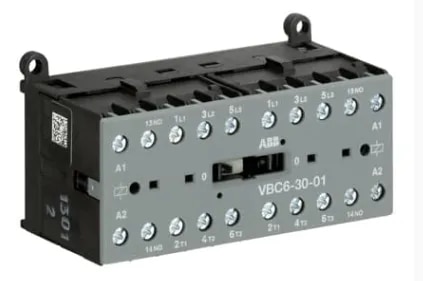

ABB GJL1213901R0014 – VBC6-30-01-04 Mini Reversing Contactor is a compact DC-operated reversing contactor assembly designed for reliable forward and reverse control of three-phase motors. The assembly incorporates a normal mechanical interlock to prevent simultaneous operation of the forward and reverse contactors, making it suitable for motor-direction control applications where safe switching and compact panel dimensions are required. The unit operates with a 110–125 V DC control coil and features 3 normally open main contacts (3NO) together with 1 normally closed auxiliary contact (1NC). At 500 V, its AC-3 rating is 5.5 A, while at 690 V it is 3.5 A. For AC-1 duty, it supports 20 A at 40°C.
