GJL1213901R0011

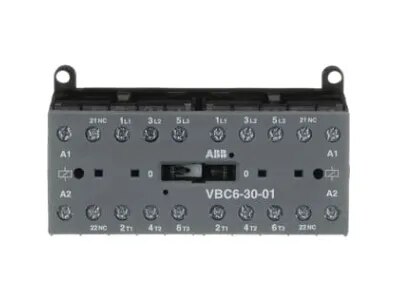

ABB GJL1213901R0011 – VBC6-30-01-01 Mini Reversing Contactor is a compact DC-operated reversing contactor assembly designed for dependable forward and reverse control of three-phase motors. It uses a normal mechanical interlock to prevent simultaneous operation of the forward and reverse contactors, making it suitable for applications where safe motor direction control and compact panel dimensions are required. The unit operates with a 24 V DC control coil and features 3 normally open main contacts (3NO) together with 1 normally closed auxiliary contact (1NC).At 500 V, the AC-3 current rating is 6.5 A, and at 690 V it is 3.5 A. For AC-1 operation, it supports 20 A at 220–440 V and 40°C.
