GJL1211901R8105

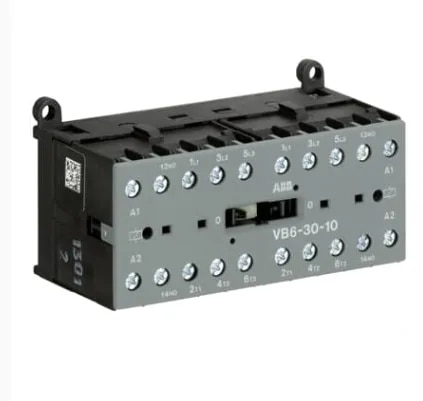

ABB GJL1211901R8105 – VB6-30-10-85 Mini Reversing Contactor is a compact electromagnetic reversing contactor assembly designed for reliable forward and reverse control of three-phase motors. It features mechanically interlocked contactors to prevent simultaneous forward and reverse operation, making it suitable for motor direction-control applications where safe switching and compact panel dimensions are required. The unit operates with a 380–415 V AC control coil at 40–450 Hz and has 1 normally open integrated auxiliary contact. ABB specifies an AC-3 operational current of 9 A at 400 V and 55°C, corresponding to a motor rating of 4 kW at 400 V.
