GJL1211901R8104

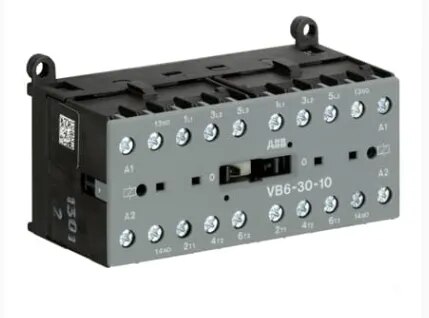

ABB GJL1211901R8104 – VB6-30-10-84 Mini Reversing Contactor is a compact reversing contactor assembly designed for reliable forward and reverse control of three-phase motors. The assembly uses mechanically interlocked contactors to prevent simultaneous operation of the forward and reverse circuits, providing safe and dependable direction control. It features 3 normally open main power contacts, an integrated 1 normally open auxiliary contact, and a 110–127 V AC control coil. The unit uses screw terminals and is designed for compact control-panel installation. ABB lists the VB6 series for motor applications up to 4 kW and general-purpose AC-1 loads up to 20 A.
