GJL1211901R8010

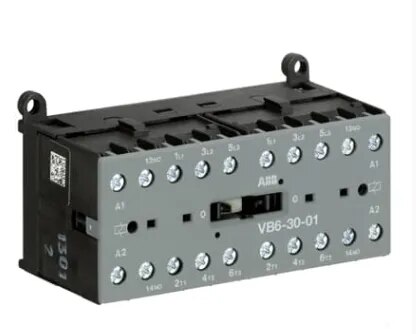

ABB GJL1211901R8010 – VB6-30-01-80 Mini Reversing Contactor is a compact reversing contactor assembly designed for reliable forward and reverse control of three-phase motors. It uses mechanically interlocked contactor operation to prevent simultaneous energization of the forward and reverse circuits, helping provide safe and dependable motor direction control. The unit features 3 normally open main power contacts (3NO) and 1 normally closed auxiliary contact (1NC) and is equipped with a 220–240 V AC control coil. The integrated NC auxiliary contact is useful for electrical interlocking, feedback, sequencing, and control-circuit functions.
