GJL1211901R0103

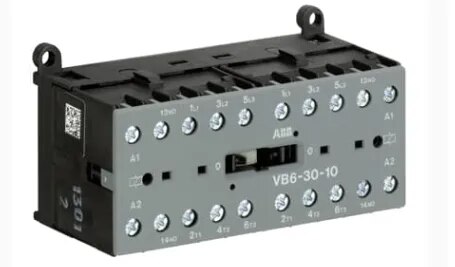

ABB GJL1211901R0103 – VB6-30-10-03 Mini Reversing Contactor is a compact reversing contactor assembly designed for forward and reverse control of three-phase motors. It combines two electrically coordinated contactor functions with an integrated mechanical interlock, helping prevent simultaneous energization of the forward and reverse circuits. The assembly is equipped with a 48 V AC control coil operating over 40–450 Hz, screw terminals, and integrated auxiliary contact functionality. The VB6 range is suitable for motor loads up to 4 kW at 400 V under AC-3 duty and general-purpose loads up to 20 A under AC-1 duty.
