GJL1211901R0011

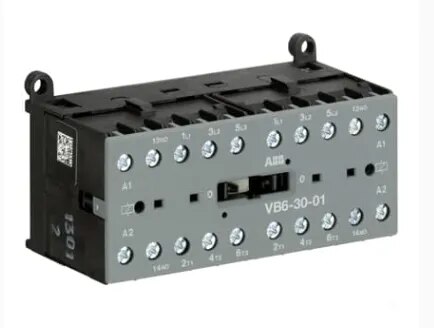

ABB GJL1211901R0011 – VB6-30-01-01 Mini Reversing Contactor is a compact reversing contactor assembly designed for forward and reverse control of three-phase motors. The assembly incorporates a mechanical interlock to prevent simultaneous engagement of the forward and reverse contactors, helping provide dependable motor direction control. The unit is equipped with a 24 V AC control coil, 3 normally open main contacts (3NO) and 1 normally closed auxiliary contact (1NC). ABB specifies an AC-3 operational current of 8.5 A at 380/400 V, corresponding to a motor switching capacity of 4 kW at 400 V.
