GJH1213001R0315

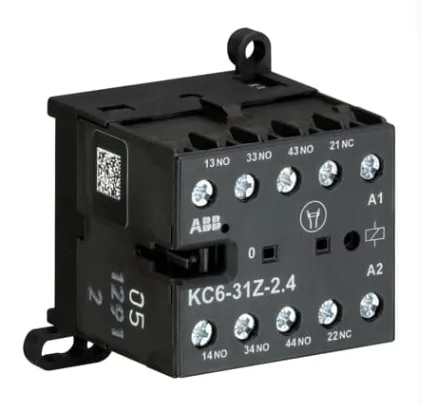

The ABB KC6-31Z-05, Product ID GJH1213001R0315, is a compact 4-pole mini contactor relay designed for reliable switching of control signals in industrial automation, electrical control panels, machinery and commercial building applications. It is equipped with 3 normally open (3NO) and 1 normally closed (1NC) auxiliary contacts and operates from a 220–240 V DC control coil. The device provides a conventional free-air thermal current rating of 6 A and a rated insulation voltage of 690 V. Under AC-15 utilization, it supports 4 A at 220/240 V and 3 A at 380/400 V, while its DC-13 rating is 0.4 A at 220/240 V DC. The KC6-31Z-05 uses screw terminals with IP20 protection and can be installed on standard 35 mm DIN rails or by screw mounting. ABB specifies mechanical durability of approximately 10 million operating cycles. Its compact dimensions, noiseless DC coil and visible switching-position indication make it especially suitable for space-constrained control panels requiring dependable and frequent switching.
