GJH1213001R0224

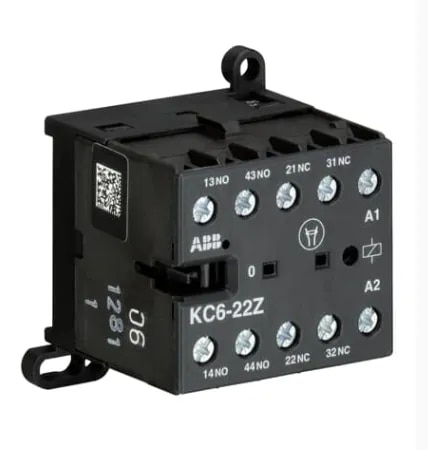

The ABB KC6-22Z-04, Product ID GJH1213001R0224, is a compact 4-pole mini contactor relay designed for reliable control-signal switching in industrial automation, machinery, commercial buildings and electrical control panels. It incorporates 2 normally open and 2 normally closed auxiliary contacts and operates with a 110–125 V DC control coil. The relay has a conventional free-air thermal current rating of 6 A and a rated insulation voltage of 690 V. For AC-15 control applications, it supports up to 3 A at 380/400 V, while its DC-13 rating includes 0.7 A at 110 V DC. The KC6 series uses screw terminals, offers IP20 terminal protection and mounts on standard TH35 DIN rails. Its compact dimensions, hum-free DC coil, switching-position indication and mechanical durability of approximately 10 million operating cycles make it suitable for space-constrained and frequently operated control circuits.
