1SYP101664C0001

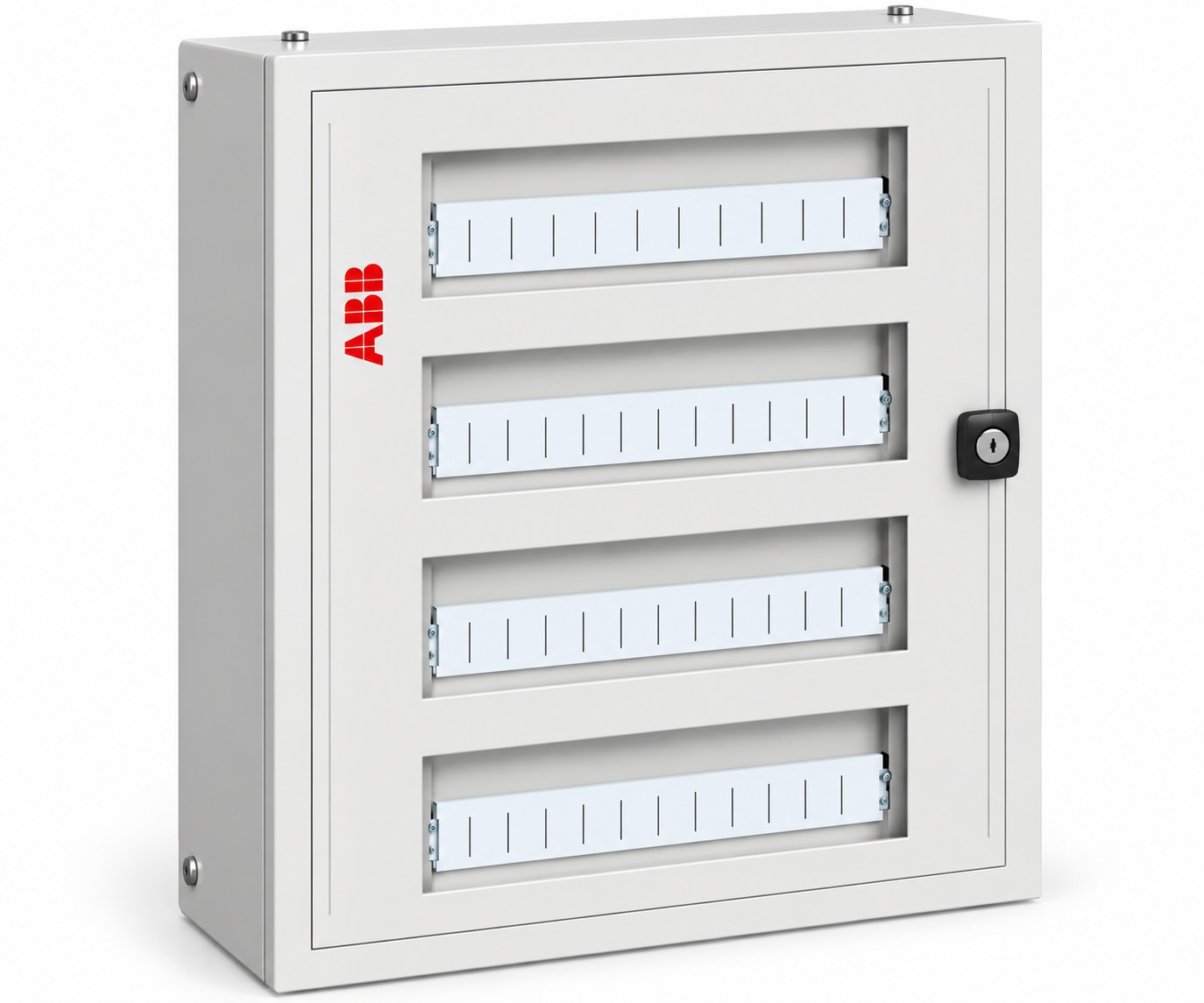

ABB ITUS Flexy Tier Distribution Board (1SYP101664C0001), a robust electrical distribution enclosure designed to support organized and efficient power distribution in industrial, commercial, and residential electrical installations.

The ABB ITUS Flexy Tier range is engineered to provide flexibility in the selection and arrangement of electrical protection devices. Its modular design supports the installation of compatible miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs), isolators, and other DIN-rail-mounted electrical switching and protection equipment.

The product code suggests a 4-row, 16-module-per-row configuration with 64 modular spaces, subject to confirmation from ABB's exact product datasheet. Such an arrangement provides generous space for multiple outgoing circuits and flexible protection-device installation.

The ITUS Flexy Tier enclosure range uses sturdy metal construction with protective metal doors. ABB catalogue information for this range identifies IP43 ingress protection and IK09 mechanical impact resistance, offering protection against solid objects, spraying water, and mechanical impacts under their respective standards.

Designed for convenient installation and maintenance, the Flexy Tier series supports organized wiring, circuit identification, and modular expansion according to project requirements. The range also provides shrouded neutral and earthing links, removable gland plates, and provisions for flush or surface mounting.
