1SYP101642C0001

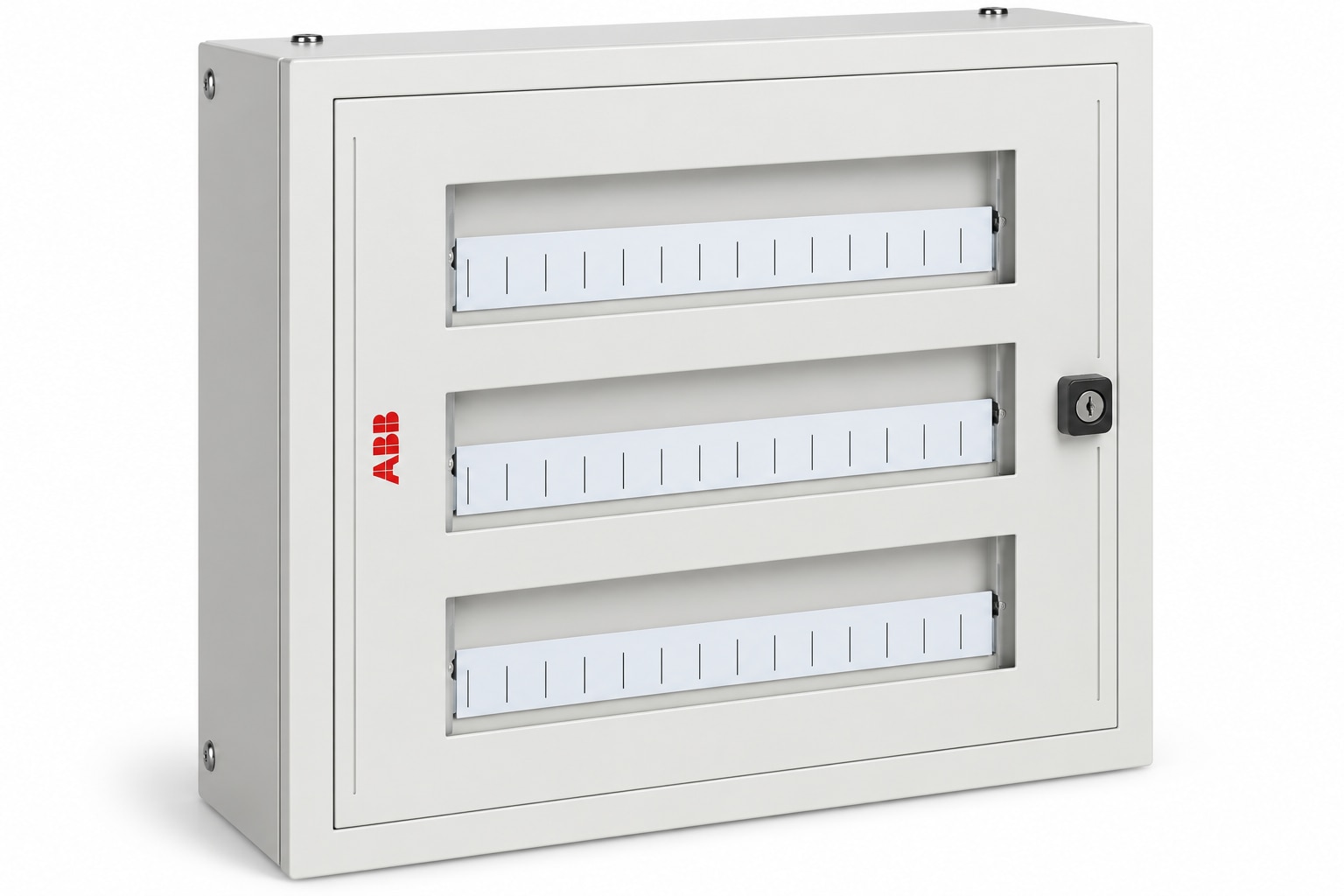

ABB ITUS 3 Row 14 Module Flexy Tier Distribution Board (1SYP101642C0001), a high-quality electrical distribution enclosure designed for safe, organized, and efficient power distribution in residential, commercial, and industrial electrical installations.

Manufactured by ABB, this distribution board belongs to the ITUS SVFLM Flexy Tier series and features a three-row modular configuration with 14 module spaces per row, providing a total capacity of 42 modules.

Its flexible modular arrangement allows electrical contractors and panel builders to configure compatible incoming and outgoing protective devices, including miniature circuit breakers (MCBs), isolators, residual current circuit breakers (RCCBs), and other DIN-rail-mounted electrical equipment.

The ABB ITUS Distribution Board features a robust metal enclosure with a protective metal door for enhanced durability and mechanical strength. Its IP43 ingress protection rating helps safeguard electrical components against solid objects larger than 1 mm and spraying water, while the IK09 mechanical impact resistance rating provides additional protection against external impacts.

The Flexy Tier design offers flexibility for selecting suitable incoming and outgoing configurations according to installation requirements. It also provides shrouded neutral links, earthing provisions, and removable top and bottom gland plates with cable entry knockouts.

Designed for flush and surface mounting, the ABB ITUS 42 Module Distribution Board supports organized wiring, convenient circuit identification, inspection, and maintenance.
