1SYN022785R6300
INR 35707INR 102020
In stock
Description

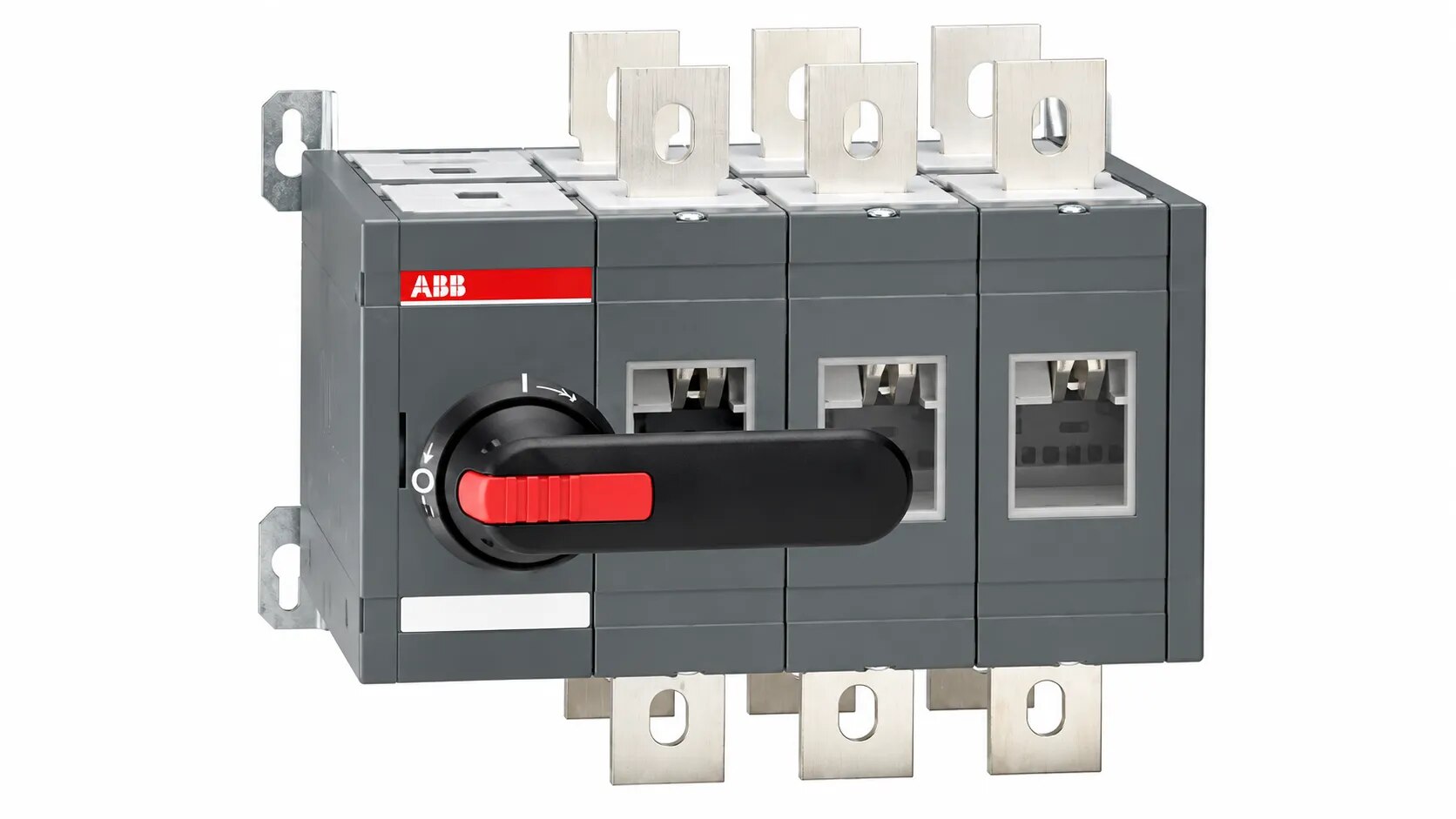

ABB OT800EO3CP Change-Over Switch
The ABB OT800EO3CP is an 800 A, 3-pole manual change-over switch designed for high-capacity power switching in industrial and commercial electrical systems. It features a black IP65 pistol-type handle, shaft and bolt set for cable connection, padlocking capability in the O-position, and door interlocking in the I- and II-positions.
The switch is suitable for base mounting and front operation. It supports AC operating currents up to 800 A across 380–415 V, 500 V, and 690 V systems, with a rated main-circuit voltage of up to 1,000 V.
Specifications
| Poles | 3P |
|---|---|
| Conventional Thermal Current (Ithe): | Fully Enclosed 800 A |
