1SYN022872R1680
INR 87728INR 250650
In stock
Description

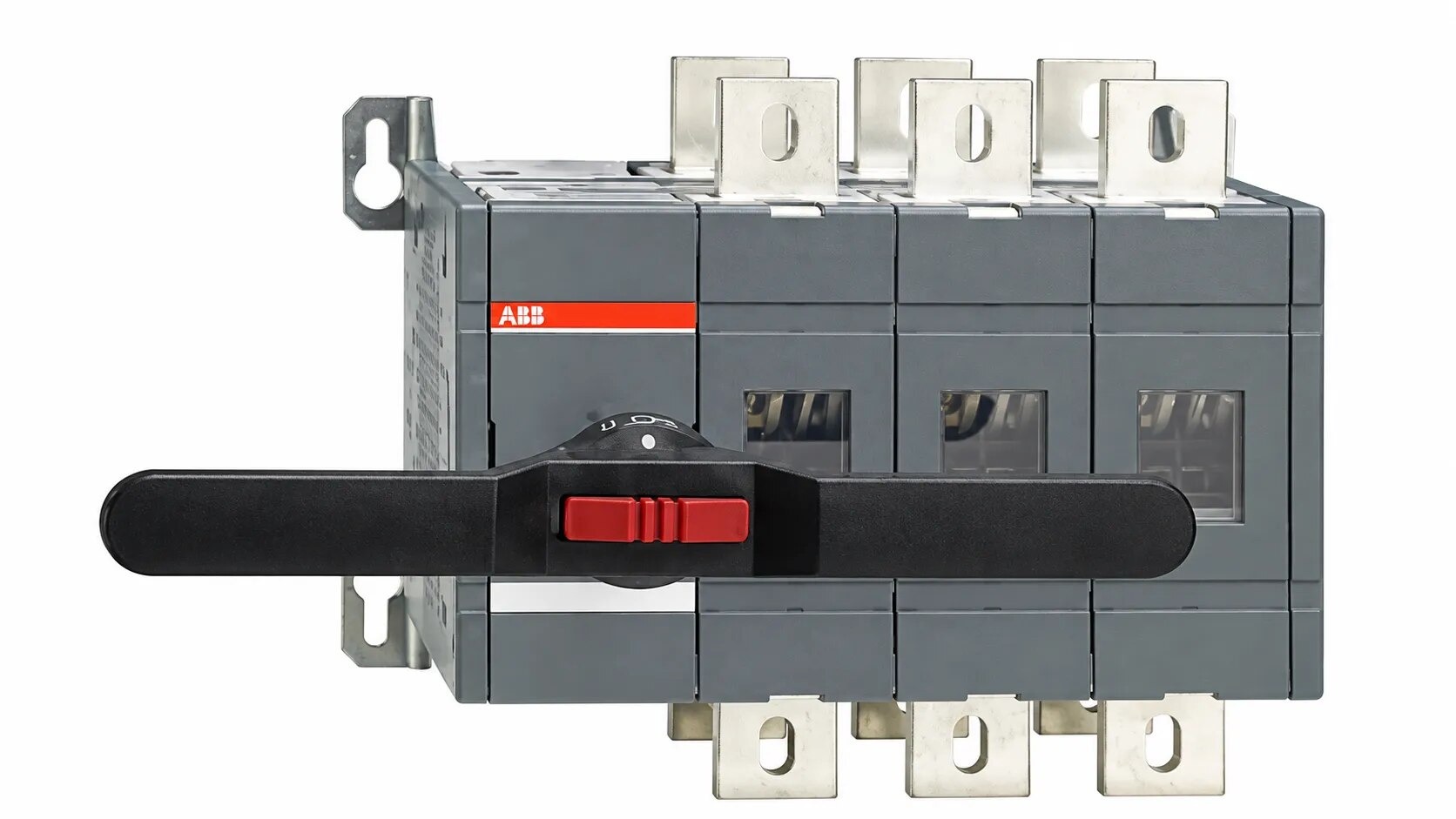

ABB OT1000EO3CP Change-Over Switch
The ABB OT1000EO3CP is a high-capacity 1,000 A, 3-pole manual change-over switch designed for demanding industrial and commercial power distribution applications. It features a black IP65 pistol-type handle, shaft and bolt set for cable connection, padlocking capability in the O-position, and door interlocking in the I- and II-positions.
The switch is designed for base mounting and front operation. It supports AC operating currents up to 1,000 A across 380–415 V, 500 V, and 690 V systems, with a rated main-circuit voltage of up to 1,000 V.
Specifications
| Poles | 3P |
|---|---|
| Rated Insulation Voltage (Ui): | 1000 V |
