1SDA068196R1

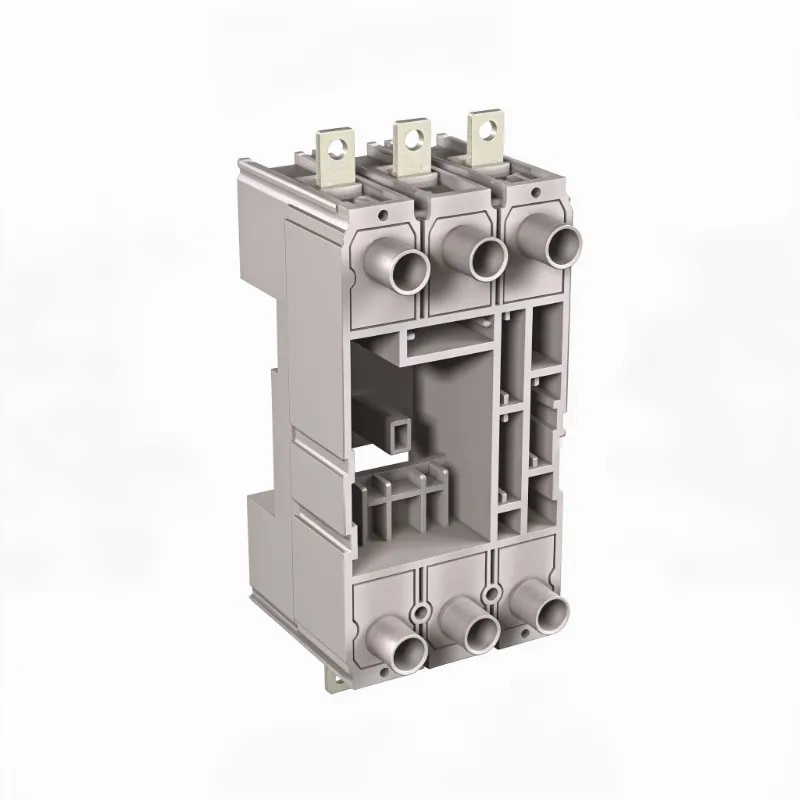

ABB XT3 P FP 3p EF – Fixed Part for Plug-in Tmax XT3 Circuit Breakers

Enable fast and safe breaker maintenance with the ABB XT3 P FP 3p EF Fixed Part. Designed as the stationary base for plug-in versions of the SACE Tmax XT3 circuit breakers, this fixed part allows the breaker to be quickly inserted and removed without disturbing the wiring.

This fixed part is specifically designed for 3-pole (3P) XT3 breakers with Front Extended terminals. It is rated for up to 250A and supports operational voltages up to 690 V AC and 500 V DC.

By using this plug-in base, you can minimize downtime during maintenance or replacement—simply unplug the old breaker and plug in the new one. It complies with IEC 60947-2 and UL489 standards, ensuring the quality and safety you expect from ABB.
