1SCA022383R2480

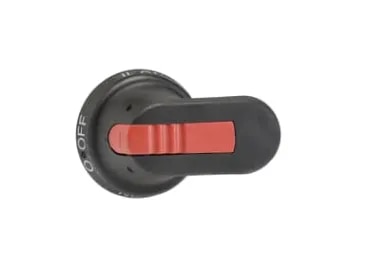

ABB OHB65J6E011 – Part No. 1SCA022383R2480 is an external pistol operating handle designed for door-mounted operation of compatible ABB OT series change-over switches. The handle is used when the actual change-over switch is installed inside an electrical panel while the operator needs to control it from the outside of the enclosure. A compatible 6 mm operating shaft connects the handle to the switch mechanism.

The handle is black, designed for door interlocking in the I and II positions, and can be padlocked in the OFF position. ABB specifies protection up to IP65 / NEMA Type 1, 3R and 12 for this handle design, with provision for up to three padlocks.
