1SBL237501R1300

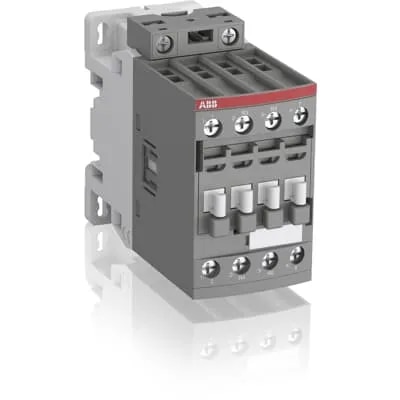

The ABB AF26-22-00-13 Contactor, Part No. 1SBL237501R1300, is a compact 4-pole block contactor designed mainly for switching non-inductive or slightly inductive loads. Its 2 normally-open + 2 normally-closed main pole configuration is useful in industrial control circuits where both NO and NC power switching functions are required. ABB identifies typical usage for resistance-type and general power-control applications.

For AC-1 general switching duty, ABB rates the contactor at 45 A at 690 V and 40°C, 40 A at 60°C, and 32 A at 70°C. Its conventional free-air thermal current is 55 A. ABB also lists motor-duty ratings up to 11 kW at 400/415/440/500 V and 9 kW at 690 V.
