1SBL237501R1200

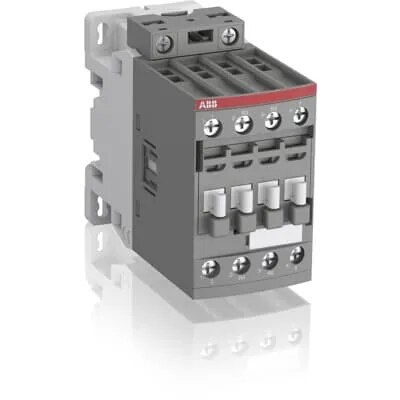

The ABB AF26-22-00-12 Contactor, Part No. 1SBL237501R1200, is a compact 4-pole power contactor designed for industrial switching applications where both normally-open and normally-closed power contacts are required. Its 2 NO + 2 NC main contact configuration makes it suitable for heater control, HVAC systems, OEM machinery, automation panels, auxiliary power switching, and general industrial control circuits.

The AF26 platform is rated for AC-1 general switching up to 45 A at 690 V and 40°C, with a conventional thermal current of about 55 A. It can also be used for AC-3 motor-duty applications, with approximately 22 A at 380/400 V, corresponding to around 11 kW at 400 V.
