1SBL177501R1400

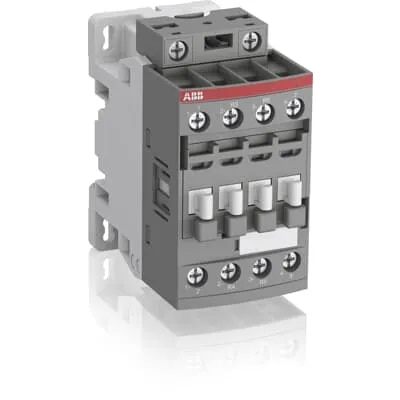

The ABB AF16-22-00-14 Contactor, Part No. 1SBL177501R1400, is a compact 4-pole block contactor designed mainly for switching non-inductive or slightly inductive loads. Its 2 normally-open + 2 normally-closed main pole arrangement makes it suitable where both NO and NC power switching functions are required in one device, such as heater circuits, HVAC panels, OEM machinery, automation systems, auxiliary power switching, and general industrial control applications.

For AC-1 duty, this model is rated at 30 A at 690 V up to 60°C, with a conventional free-air thermal current of 35 A. In AC-3 motor duty, ABB specifies 18 A at 380/400/415/440 V, corresponding to 7.5 kW at 380/400 V and 9 kW at 415/440 V.
