1SBL177501R1200

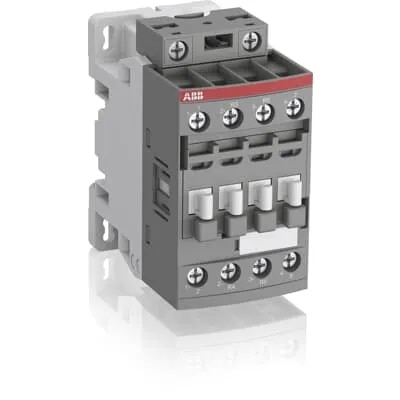

The ABB AF16-22-00-12 Contactor, Part No. 1SBL177501R1200, is a compact 4-pole power contactor designed mainly for controlling non-inductive or slightly inductive loads in industrial and commercial electrical systems. Its 2 normally-open + 2 normally-closed main contact configuration makes it useful in applications where both NO and NC power switching functions are required in one device.

It uses ABB’s AF electronic coil interface with a control-voltage range of 48–130 V AC at 50/60 Hz and 48–130 V DC. ABB states that AF contactors can accommodate large control-voltage variations and incorporate built-in surge protection. The contactor supports main circuits up to 690 V AC and is designed with screw terminals and a compact block-type construction.
