1SAX111001R1104

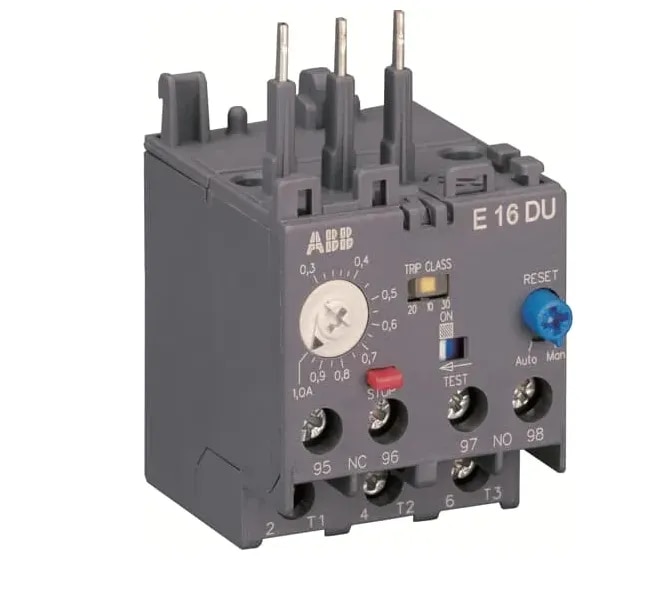

ABB 1SAX111001R1104 E16DU-6.3 Electronic Overload Relay is a self-supplied electronic motor-protection relay designed to provide reliable protection of three-phase motors against overload and phase-failure conditions. Its wide adjustable current range of 2.0 A to 6.3 A allows accurate matching with the motor’s rated current. A major advantage of the E16DU-6.3 is its selectable Trip Class 10E, 20E or 30E, allowing the relay to be adapted to motors with different starting times and operating requirements. The relay is self-supplied, so no additional external power supply is necessary for its basic electronic motor-protection function. The unit incorporates one normally closed trip contact (1NC) and one normally open signaling contact (1NO). It also provides temperature compensation, trip-free operation, STOP and TEST functions, trip indication, and selectable manual or automatic reset. ABB specifies direct connection to compatible contactors, with separate mounting kits available where independent mounting is required. Empower
