1SAX111001R1103

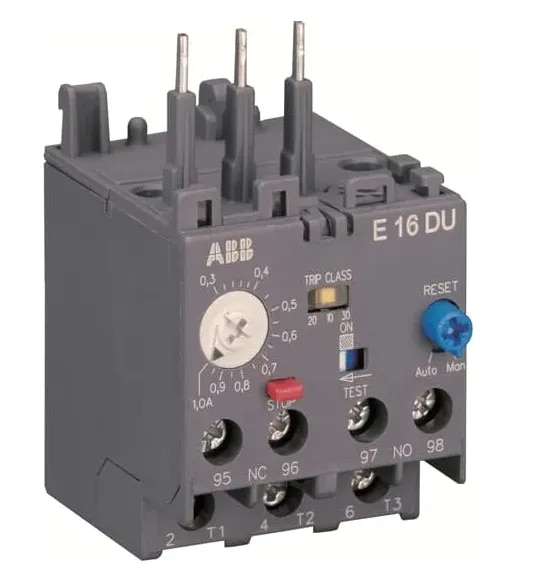

ABB 1SAX111001R1103 E16DU-2.7 Electronic Overload Relay is a self-supplied electronic motor protection relay developed to provide reliable protection for electric motors against overload and phase-failure conditions. Its wide adjustable current range of 0.80 A to 2.70 A enables accurate matching to the rated current of the connected motor. The relay incorporates one normally closed trip contact (1NC) and one normally open signaling contact (1NO). It also provides temperature compensation, selectable manual or automatic reset, trip-free operation, STOP function, TEST function and trip indication. ABB specifies direct connection to compatible contactors, while separate mounting kits are available when independent installation is required.
