1SAX101910R1001

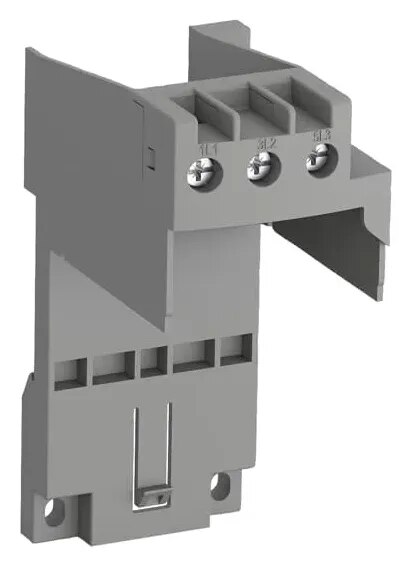

ABB 1SAX101910R1001 DB19EF Single Mounting Kit is a dedicated accessory for the ABB EF19 electronic overload relay range. It provides a standalone mounting base so the overload relay can be installed separately from the contactor when panel layout, wiring, service access or equipment spacing requires independent mounting. ABB’s current documentation specifically lists DB19EF as the single mounting accessory for the EF19 family. The DB19EF supports a 3-pole main circuit, rated operational current of 18.9 A, 690 V AC operational voltage, 690 V insulation voltage and 6 kV impulse withstand voltage. Its compact dimensions are approximately 45 mm wide × 103.5 mm high × 67.3 mm deep, with a net weight of approximately 0.046 kg.
