1SAM360000R1015

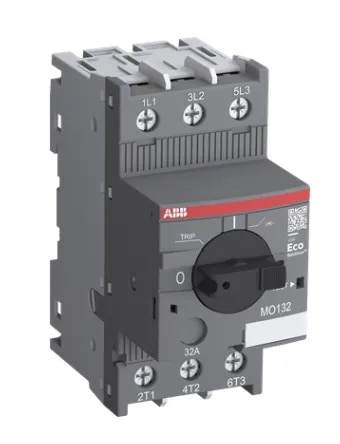

ABB 1SAM360000R1015 MO132-32 is a compact 45 mm wide magnetic-only manual motor starter rated at 32 A. It is designed to manually switch motors and electrical loads while providing reliable fuse less short-circuit protection. ABB specifies a rated service short-circuit breaking capacity of 25 kA at 400 V AC for this model. The MO132-32 includes a built-in disconnect function, trip-free mechanism and lockable rotary operating handle with clear switch-position indication. Because it provides magnetic short-circuit protection only, it should be combined with a suitable overload relay or motor controller when motor overload protection is required
