1SAM360000R1007

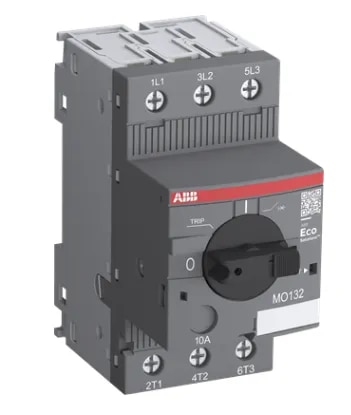

ABB 1SAM360000R1007 MO132-2.5 is a compact 45 mm wide magnetic-only manual motor starter designed for manually switching motors and electrical loads while providing reliable fuse less short-circuit protection. It has a rated operational current of 2.5 A and corresponds to approximately 0.75 kW motor rating at 415 V AC. ABB’s ordering data lists a 100 kA short-circuit breaking capacity for this MO132 rating. The MO132-2.5 incorporates a built-in disconnect function, trip-free mechanism and lockable rotary operating handle with clear switch-position indication. Since it is a magnetic-only starter, complete motor overload protection is achieved by combining it with a suitable overload relay or motor controller.
